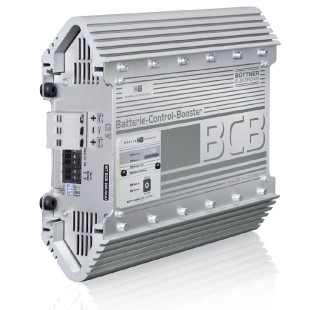

Battery-Control-Booster MT BCB 20/20 IUoU

Základní specifikace Battery-Control-Booster MT BCB 20/20 IUoU funkce:

Type: MT BCB 25/20 IUoUVoltage: 12 VCurrent: 20 ACable Length: 5 mCharging Current: 20 ADimensions (W x D x H): 233 × 270 × 70 mmPack Size: 7 × 22.3 × 27 cmWeight: 4.4 kg

Detailní popis Battery-Control-Booster MT BCB 20/20 IUoU

Charger/Booster/Pulser in one device

The Battery Control Booster MT BCB 25/20 by Büttner Elektronik is the ultimate 3-in-1 solution for an optimal charging of your on-board battery/ batteries. The booster can be installed in parallel to the existing charging technology in the recreational vehicle.

1. At the 230 V Network: The BCB supports any existing charger with additional 20 A and fulfils the charging characteristic required by the battery manufacturer with its temperature-controlled IUoU characteristics (liquid acid/ gel/ AGM/ LiFePO4).

2. While Driving: Thanks to the booster function, the MT 25/20 BCB optimises charging while driving. Again, the IUoU charging is active in this case and, depending on the charging state, the BCB supports full charge with an additional 20 A. Voltage loss due to long charging lines are fully compensated. Hence, it guarantees a full charge at longer distances; an overcharge of the vehicle battery is excluded.

3. Pulser Function: can be activated. Prevents falling out  of the Pb-batteries due to sulphating.

Technical Data: Charging Current at 230 V: 20 A; 12 V Booster Mode: 20 A; System Voltage: 12 V; Delivery incl. temperature sensor and extension cable (5 m) for the control panel.

Installation: the BCB 25/20 includes a high-load relay with cable kit and fuse, making installation extremely easy, also in vehicles with pre-installed electric block (EBL, CBE).
