CAP 730

Základní specifikace CAP 730 funkce:

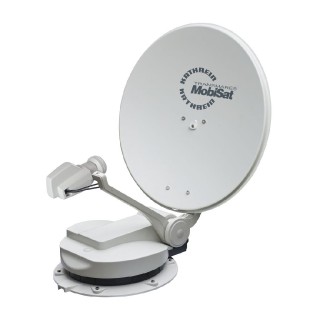

Description: MobiSet 3 TWIN – Turning Unit with 60 cm Parabolic Antenna (Twin)and HDTV-Receiver UFS 946/CI+Weight: 9.7 kg

Detailní popis CAP 730

Parabolic Antenna and LNB

Using a parabolic antenna increases the reception area compared to common flat antennas. The included Twin-LNB enables the connection of two receivers at the same time and is mechanically adjustable to the polarisation adaptation. Optimising of reception in peripheral areas of each footprint.

Turntable

The fully automatic turntable allows you to align the flat antenna to the respective satellite in a short time in order to receive the desired programmes. The determination of the satellite takes place via the selected programmes. An automatic fine tuning optimises the picture to best quality. By connecting the turntable to the ignition of the vehicle, the antenna lowers itself (park position) when the engine starts. The aerodynamic structure of the turntable and flat antenna is only 21 cm high, allowing a vehicle speed of 130 km/h (when lowered). Including required HDTV DVB S receiver UFS 946/CI+.

Installation

The turntable is optimised for the installation by its light weight. The small number of cables (one coaxial and one power supply cable) simplifies the installation of the turntable.

The CAP 730 Package consists of:

• Turntable with electronic controller, parabolic reflector, Twin-LNB, mounting plate, mounting material with roof feed-through, complete set of cables with 8 m coax cable and 10 m power supply cable, mounting and operation instructions
• HDTV Sat Receiver UFS 946/CI+

Optimal aerodynamics – low air resistance, low noise emission.

LNB: 2 switchable outlets: V/H (14/18 V), Low/High (0/22 kHz)
