ESX Quantum Q202A

Základní specifikace ESX Quantum Q202A funkce:

Output power: RMS 100 Watt; max. 200 WattDimensions (W x D x H): 24.5 × 34.5 × 7.5 cmWeight: 5.8 kg

Detailní popis ESX Quantum Q202A

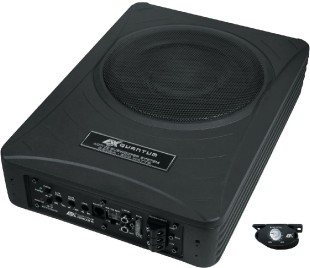

Active subwoofer system in flat design, which was especially designed for small spaces, therefore being perfectly suitable for motorhomes and vans. It can be placed under many type of seats. The sturdy cast aluminium casing contains the woofer with a very slim membrane and an appropriate frame as well as a real class A/B amplifier with low distortion. The system can be easily integrated into every manufacturer-installed sound system. The Q200A can be operated directly from the driver‘s seat via an illuminated remote control.

Technical Data:

• 20 cm (8”) active subwoofer
• power supply 12 V
• operating voltage 9 – 15 V
• output power RMS 100 W
• output power max. 200 W
• bass boost 0 – 18 dB / 45 Hz
• subsonic filter 20 Hz fixed
• low-pass filter 50 – 150 Hz
• phase switch 0°/180°
• fuse rating 10 Ampère
• dimensions W 24,5 x H 7,5 x L 34,5 cm
