Maxview Precision Sat-Kit

Detailní popis Maxview Precision Sat-Kit

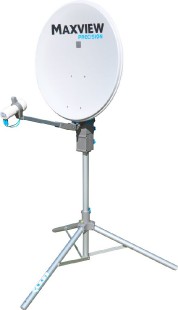

Manually adjustable, portable satellite antenna with tripod. Maxview Precision was especially developed for intuitive operation. Attention was directed to the assembly and disassembly as well as the adjustment of the pre-installed antenna. The installed sat finder simplifies the finding of satellites. One leg of the tripod is tagged with a south-direction mark that only needs to be turned to the south. The rotation limit on the tripod only permits a search angle of approx. 30 °, in this segment is the desired satellite. The tripod is equipped with a level indicator, thus safe standing on uneven grounds is possible. The included 10 m coax cable is equipped with multi-strand core – hence, it is very flexible and less likely to tangle. Includes 2 carrying bags for storage. To secure the hinged LNB arm when transporting, the Precision is equipped with a magnetic LNB-arm lock.

Simple Assembly:

• Direct the marked tripod leg towards south
• Mount the dish
• Adjust elevation
• Select a satellite on the receiver
• Scan for satellite

Dimensions and Weight:

• Precision 55: W 100 x H 156 cm / 6.1 kg
• Precision 65: W 100 x H 164 cm / 6.6 kg
• Precision 75: W 100 x H 172 cm / 7 kg

Scope of Delivery:

• Sat antenna with tripod
• universal LNB with low noise level
• carrying bags for tripod and antenna
• 10 m coax cable


Note for Switzerland & Netherlands:

In Switzerland and the Netherlands, the system requires a duo LNB. This equipment is available as a special item.
