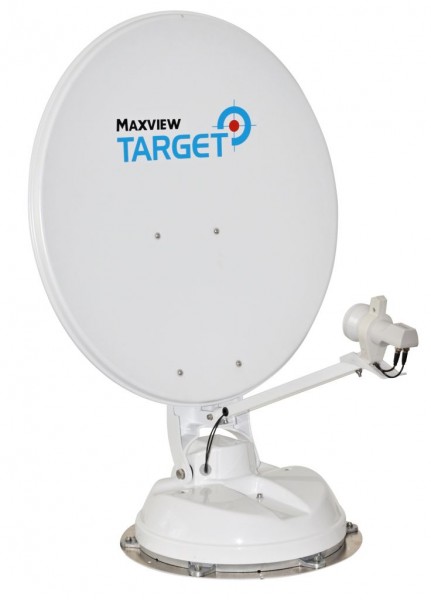

Detailní popis Maxview TARGET
Aerodynamically designed, fully automatic, receiver independent system.
Aeodynamically designed and fully automatic sat system with precisely shaped 65 or 85 cm powder-coated dishes made of aluminium, that guarantee best reception even on the edge of the footprint areas. The receiver-independent Maxview Target needs only one button for operation and finds one of the 5 preprogrammed sattelites (Astra 1, Astra 2, Astra 3, Hotbird und Thor) within a very short period of time. Their high quality motors and gear, run submerged in a fully encapsulated oil bath, thus gfuaranteeing functionality of the device for years. Required updates for software and new sattelites can easily be carried out via the well accessible USB port. Preassembled cables allow fast and uncomplicated installation.
Features:
- Very simple operation
- Simply manually adjustable skew angle
- Sturdy and anti-corrosive external unit
- Overload protection
- 10 m coax cable and 5 m control cable preassembled
- Future-proof design with USB updates for prospective satellites
- 3-year warranty
- Manufactured in Europe
Scope of Delivery:
Motor-operated external unit with dish, low-noise LNB, control box, mounting materials.
Technical Data:
- Power supply 10 – 15 V
- Automatical retraction of the antenna when the vehicle is started
- Average searching time 30 – 90 seconds (approx.)
- Power consumption while searching max. 2 Amperes • Universal LNB with 0.1 – 0.2 dB noise factor
- Can store up to 10 satellites
- Preprogrammed to 5 satellites: Astra 1 (19.2°), Astra 2 (28.2°), Astra 3 (23.5°), Hotbird (13°) und Thor (0.8° W) – other dish configurations on request
- Dish size 65 / 85 cm
- Weight antenna unit 10 kg (65 cm) respectively 11 kg (85 cm)
Control Unit
Choose the desired satellite by green LEDs with positions 1 – 5 (1=Astra 1, 2=Astra 2, 3=Astra 3, 4=Hotbird, 5=Thor) and start searching. The control unit always retains the satellite last chosen. Other satellite configurations on request. Software updates are implemented over the front USB port. Delivery includes universal brackets for vertical or hanging installation. Dimensions W 20 x H 4 x D 13 cm.
