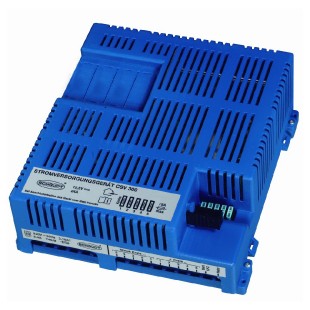

Power Supply Unit CSV 300

Základní specifikace Power Supply Unit CSV 300 funkce:

Voltage: 12 V, 24 V, 230 VColour: blueDimensions (W x D x H): 225 × 210 × 85 mmWeight: 1.5 kg

Detailní popis Power Supply Unit CSV 300

The power supply CSV 300 is used to supply 12 V devices such as submersible pumps, fans, lamps and similar devices via a switching power supply (12 V at 24 A/300 VA). There is no external phonomat required as the output voltage is sieved. The CSV 300 is particularly suitable for caravans that are connected mainly to the 230 V mains and supply the load off the vehicle battery only temporary. Switching between the supply of the vehicle battery and the (preferential) 230 V power supply takes place automatically when mains voltage is present. No charging function! Equipped with 5 separately fused 12 V circuits and a 230 V power distribution with 2-pin circuit breaker 13 A.
