Rear View System PerfectView RVS-794 / 7"

Základní specifikace Rear View System PerfectView RVS-794 / 7" funkce:

Case Colour: silverDesignation: RVS-794Camera: CAM 44Heating: –Luminous Sensitivity: < 1 Lux or 0 Lux with LEDsConsumption (Power): 1.2 WResolution: 290,000 PixelScreen Size: 7"Operating Temperature: -30 – +70 °CCamera Sensor: 1/3“ Colour-CMOSInfrared LED: ✓Microphone Integrated: ✓Automatic Cover: ✓Monitor: 7"Dimensions (W x D x H): 11.4 × 6.2 × 7.4 cmWeight: 360 g

Detailní popis Rear View System PerfectView RVS-794 / 7"

The approved rear view product line has been customized especially for use in recreational vehicles. The system can be randomly combined from a selection of 2 high-quality LCD monitors and 3 compact colour cameras. This way, 6 different systems are developed which live up to all (comfort) expectations. The monitors differ only in size: 5“ and 7“ can be selected. High-grade LCD techniques and LED backlight provide first-class image reproduction, large easily accessible illuminated buttons render the operation of the monitors very comfortable. They are operated with 11 – 30 V and feature 3 camera inputs with signal recognition. Naturally, the image can be shown in a normal way as well as mirrored.

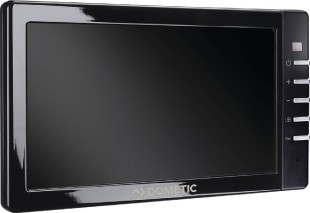

Technical data 5" Monitor:

• Aspect ratio: 16:9
• Resolution: 384,000 pixels
• Luminous sensitivity: 350 cd/m²
• Operating temperature: -20 - +70 °C
• Power consumption: 8 watts
• Dimensions: W 14.6 x H 8.7 x D 2.6 cm
• Weight: 350 g

Technical data 7" Monitor:

• Aspect ratio: 16:9
• Resolution: 384,000 pixels
• Luminous sensitivity: 400 cd/m²
• Operating temperature: -20 - +70 °C
• Power consumption: 8 watts
• Dimensions: W 19 x H 11 x D 2.6 cm
• Weight: 400 g

PerfectView RVS-545(W) / RVS-745(W)

Due to its compact dimensions and the small structural form the CAM 45 adjusts itself perfectly to modern vehicle shapes. Equipped with reliable CCD-Technology the CAM 45 provides razor-sharp images. The separately disposed IR-LEDs ensure a very well night vision. By means of the microphone, acoustical commands can be transmitted via the monitor-internal loudspeaker. The camera is available in silver and white.

Technical data Camera:

• Power supply: 11 - 16 volts
• Power consumption: 1,2 watt
• Camera sensor: 1/4" color CCD
• Viewing angle diagonal: 120°
• Resolution: 250,000 pixels
• Luminous sensitivity: <1 lux or 0 lux with LEDs
• Operating temperature: -20 - +70 ° C
• Microphone integrated
• Infrared LED
• Heater
• Body color: silver / white
• Dimensions: W 8 x H 6,8 x D 4,6 cm
• Weight: 165 g

PerfectView RVS-580 / RVS-780

CAM 80 C shows more than others do: The large viewing angle of 145° also captures obstacles in peripheral zones. While driving the motor driven cover protects the lens against dirt or damages. The temperature controlled heating provides best picture quality even at low temperatures, via microphone and the internal speaker of the monitor acoustical commands can be transmitted.

Technical data Camera:

• Power supply: 11 - 16 volts
• Power consumption: 1.8 watt with heating
• Camera sensor: 1/3 "color CCD
• Viewing angle diagonal: 145°
• Resolution: 270,000 pixels
• Luminous sensitivity: <0.5 lux or 0 lux with LEDs
• Operating temperature: -20 - +65 ° C
• Microphone integrated
• Infrared LED
• Heater
• Automatic cover
• Body color: silver
• Dimensions: W 10.6 x H 6.8 x D 5.4 cm
• Weight: 350 g

PerfectView RVS-594 / RVS-794
CAM 44 used in these high-end systems has 2 separate camera modules: A wide-angle lens with a viewing angle of 140° for close-up ranges and a telephoto lens with a viewing angle of 50° for distant ranges. Separately arranged IR-LEDs ensure a very well night vision. While driving the motor driven cover protects the lens against dirt or damages. 3 distance lines offer additional safety when reversing. Equipped with a microphone accoustic instructions can be put out via the monitors internal speaker.
