Reversing Camera incl. Brake Light Console ESX VNA-RCAM-DBJ101

Základní specifikace Reversing Camera incl. Brake Light Console ESX VNA-RCAM-DBJ101 funkce:

Model: DBJ101Viewing Angle Diagonal: 150°Voltage: 12 VLuminous Sensitivity: 0,1 LuxColour: blackResolution: 307,200 PixelOperating Temperature: -20 bis +70 °CCamera Sensor: 1/4“ Colour-CMOS

Detailní popis Reversing Camera incl. Brake Light Console ESX VNA-RCAM-DBJ101

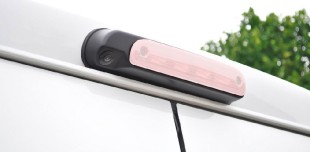

Wide angle camera with an angle of 150° developed and optimized to fit to a Fiat Ducato Commercial Van from 07/2006. Integrated into a brake light console (included in delivery) it is mounted between third brake light and body. The original brake light is continued to be used. A bodyside seal prevents the penetration of moisture. The connection cable 20 m in length is appropriate to moniceiver and navigation systems with RCA inputs.

Technical data:

• power supply 12 volts
• power consumption < 0,5 watts
• image sensor 1/4" CMOS
• viewing angle diagonal 150°
• resolution 640 x 480 pixels
• operating temperature -20 – +70 °C
• housing colour black
