Detailní informace
Kód produktu: 71 101

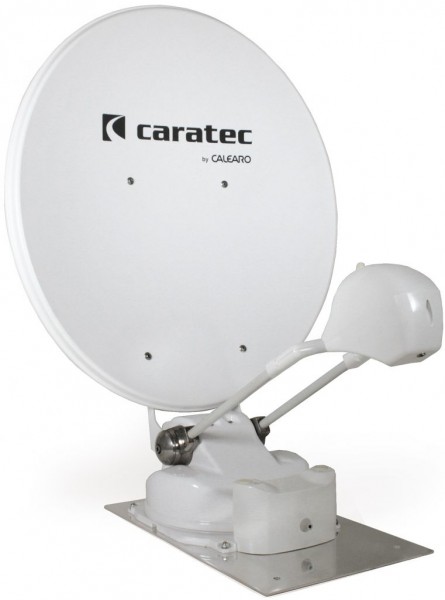

Detailní popis Sat-System Caratec CASAT
Robust and durably constructed receiver-independent fully automatic devices.
Very sturdy and durably constructed receiver-independent fully automatic devices, that for instance perfectly fit to the Caratec LED TVs. Due to their dish with diameters up to 85 cm, they are powerful in receiving broadcast signals. All screws are made of stainless steel, the dishes are made of powder coated aluminium and the drives of the strong motors are encapsulated. The cable routing from the base to the LNB is completely integrated into the LNB arm. CASAT-5065 and CASAT-5085 are configured to 10 satellites: Astra 1 (19,2° E), Astra 2 (28,2° E), Astra 3 (23,5° E), Hotbird (13° E), Eurobird (9° E), Thor (0,8° W), Amos (4° W), Atlantic Bird 1 (12,5° W), Atlantic Bird 3 (5° W), Hispasat (30° W). Configuration is done by control panel, which is included in delivery. It is made for flush and surface mounting. CASAT4065 is preconfigured to Astra 1 (19,2° E).
Technical Data:
- Elevation 15° – 75°
- Rotation angle 400°
- Band width 10,7 – 12,75 GHz
- Suitable for DVB-S SD and HD
- Operating temperature -20 °C to + 50 °C
- Dish size 65 (CASAT-4065, CASAT-5065), 85 cm (CASAT-5085)
- Power supply 10 – 15 V
- Dimensions L 85 x W 69 x H 20 cm (65 cm), L 105 x W 86 x H 22 cm (85 cm)
- Weight 12 kg (65 cm), 13 kg (85 cm)
Scope of delivery:
- External unit
- Operating unit
- Control panel (only CASAT-5065 and CASAT-5085)
