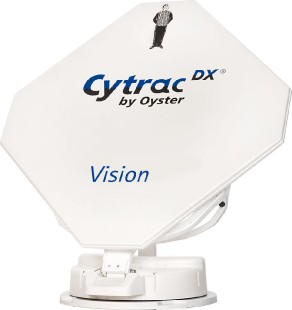

Sat System Cytrac® DX Vision

Detailní popis Sat System Cytrac® DX Vision

Basic version

Fully automatic sat system without receiver, particularly for customers who already have a receiver or TV with integrated receiver and only need a Sat system.

Without receiver

Compact, modern and enormous reception range!

• Latest antenna technology for an even better reception range
• Small, compact antenna for space saving roof mounting
• Easy, simple and intuitive to use
• Fully automatic search within 30 – 60 seconds
• LEM Technology: Reduction of search time (antenna searches in the last set inclination angle)
• Automatic retraction when starting the vehicle
• Automatic satellite change (e. g. from Astra 1 to Hotbird in case of switching the programme)
• Height: approx. 14 cm
• Weight of outdoor unit: approx. 16 kg, mounting material and accessories: approx. 2 kg
• QM-certified manufacturer according to ISO 9001
• High-quality craftsmanship and durable materials
• 3-year warranty and reliable service

• Motor operated 12/24 V external unit, complete with antenna dish and low-noise universal LNB
• Mounting material, mounting instructions and connection cable

Subject to technical changes!

Patented Reception Technology

The heart of the CytracDX® consists of 1016 coupled single antennas, which are arranged honeycombed. A strictly separate current flow between both polarisation levels reduces any overload and provides for previously unknown signal purity, which becomes positively apparent, particularly with HD programmes.

The signal accumulation occurs under use of the most modern mathematical arithmetic methods, thus providing a huge reception range.Patent no. EP 2359434

Assembly material, instructions, all cables (control cable 5 m)

The CytracDX® is the perfect sat system for Europe, and can be mounted onto nearly every vehicle- camper, caravan, or van- due to its little space requirements.
