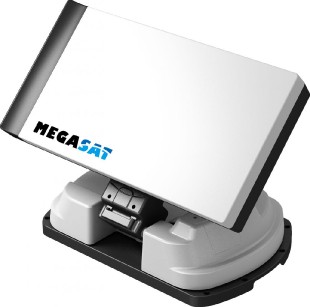

Sat System Megasat Countryman GPS

Základní specifikace Sat System Megasat Countryman GPS funkce:

Model: Countryman GPSVoltage: 12 V, 24 VPower Consumption: 30 WElevation: 15° – 90°Pre-Programmed Satellites: Astra 1, Astra 2, Astra 3, Astra 4, Hotbird, Thor, <br>Atlantic Bird 3, Hispasat, Türksat, Eutelsat 9AAngular Range Skew: -60° – +60°Positioning Time: 1 – 2 min.Operating Temperature: -30 °C – +60 °CDimensions (L x W x H): 45.4 × 31.6 × 18.8 cmWeight: 10.1 kg

Detailní popis Sat System Megasat Countryman GPS

The flat and fully automatic sat system is suitable both for mobile (thanks to its folding function it fits into every trunk) and for stationary use. Countryman aligns to the desired satellite by using the built-in GPS module, the auto skew function corrects the polarization shift of the LNB by turning the reception unit, thus offering the best possible reception all over Europe, even in the peripheral areas of the footprint. Due to its flat construction and many aluminium arts, this very light device is ideal for caravans and motorhomes. It hardly affects the vehicles total height. The control unit is preprogrammed for 10 satellites (Astra 1, Astra 2, Astra 3, Astra 4, Hotbird, Thor, Atlantic Bird 3, Hispasat, Türksat, Eutelsat 9A ).
Technical Data:
Search range unlimited (360°), elevation 15° – 90°, skew angle range -45° – +45°, fully automatic alignment in approx. 1 – 2 minutes, power supply 12 – 24 V, power consumption in search mode: max. 30 W, operating temperature -30 – +60 °C, dimensions L 51.5 x W 35.5 x H  20.1 cm, weight 10.3 kg.
Scope of Delivery:
External unit with cable, control panel (dimensions: W 16.5 x L 17.3 x H 4 cm), 2 x 12 m coaxial cable (one for the receiver, one for the control panel), base pad, transportation case, mounting plate, cable routing to the roof, mounting brackets for control panel, installation complements.
