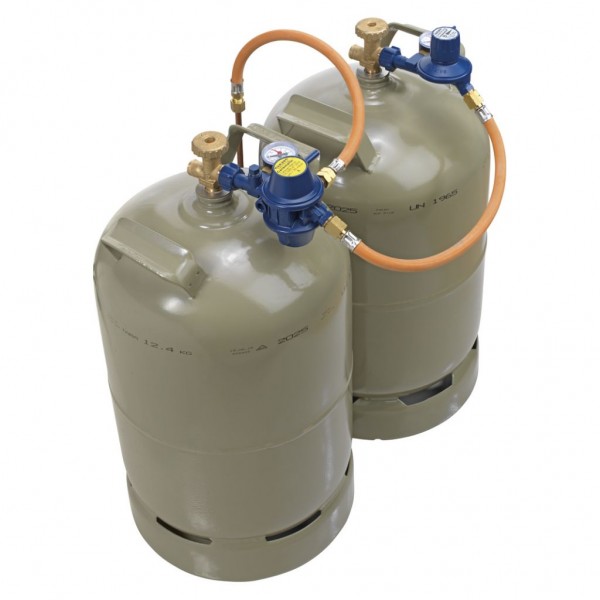

Detailní popis Two-Cylinder Gas System Caramatic® PS 16 bar
Automatic switch control for gas bottles to regulate the pressure of the nominal pressure of the gas…
Automatic switch control for gas bottles to regulate the pressure of the nominal pressure of the gas unit. Consisting of: Main and switch regulator, manometer and hose lines.
Advantages and Equipment:
- With safety relief valve PRV
- Gas back-flow safety device: Prevents the escape of gas when changing bottles
- Suitable for the use with Eis-Ex
- Medium pressure hose (rubber with textile insert; cold resistant down to -30 °C 6.3 x 3.5 mm) G G 3/8 LH-ÜM x G 3/8 LH-ÜM x 400 mm for the connection of both regulators, brass connections, stainless steel sleeves
- Connection pieces 8 or 10 mm
- Combo connection for 5, 11 or 33 kg gas bottles
Conformity:
- EC type examination according to DGR
Technical Data
- Connections: Input: Combo W Output: Main Regulator: G 1/4 LH-KN, Switch Regulator: G 3/8 LH-KN
- Output Pressure: Main Regulator: 30 or 50 mbar; Switch Regulator: 100 or 220 mbar
