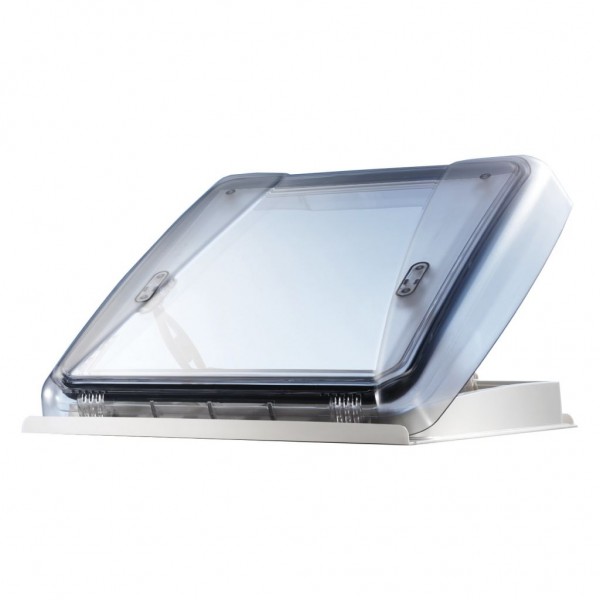

VisionStar M pro

Kód produktu: 206/151

Detailní popis VisionStar M pro

Roof hood with and without LED lighting

• Flat smoked glass dome
• Low driving noise
• Reduce draft
• Modern inner frame with pleats
• High UV protection
• Available with or without LED lighting

Technical data:

• Dimensions layout: 400 x 400 mm
• Dimensions cover: 490 x 470 mm
• Continous ventilation of up to 150 cm²
• Height above roof: 80 mm
• Weight: 3760 g/4100 g

Dimensions frame:

• without LED: 565 x 530 x 35 mm
• with LED: 565 x 570 x 35 mm

Technical data: LED illuminants:

• Warm white ~ 3000 K
• Energy efficiency class A+
• Nom. utilised flux 2 x 390 lm
• Mains power 12-14 V
• Consumption 2 x 4.2 kWh/1000 h
• Nominal service life: 10.000 h
• Number of switch cycles: 50,000 (until premature failure)
• Start-up period < 1 sec.
• Nom. half-angle 60°
