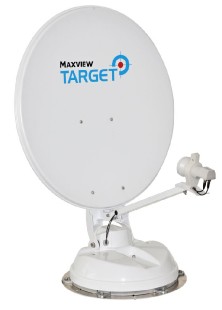

Maxview TARGET

Aerodynamically designed, fully automatic, receiver independent system. Detailní informace

Produkt nabízíme v následujících variantách:

	LNB: Twin, Mirror Size: 65 cm Kód produktu: 72 365	33 775 Kč ks Dostupnost: 5-10 dní i
	LNB: Twin, Mirror Size: 85 cm Kód produktu: 72 367	37 064 Kč ks Dostupnost: 5-10 dní i
	LNB: Single, Mirror Size: 50 cm Kód produktu: 72 362	34 049 Kč ks Dostupnost: 5-10 dní i
	LNB: Twin, Mirror Size: 50 cm Kód produktu: 72 363	34 874 Kč ks Dostupnost: 5-10 dní i

Zeptejte se odborníka

Detailní popis Maxview TARGET

Aeodynamically designed and fully automatic sat system with precisely shaped 65 or 85 cm powder-coated dishes made of aluminium, that guarantee best reception even on the edge of the footprint areas. The receiver-independent Maxview Target needs only one button for operation and finds one of the 5 preprogrammed sattelites (Astra 1, Astra 2, Astra 3, Hotbird und Thor) within a very short period of time. Their high quality motors and gear, run submerged in a fully encapsulated oil bath, thus gfuaranteeing functionality of the device for years. Required updates for software and new sattelites can easily be carried out via the well accessible USB port. Preassembled cables allow fast and uncomplicated installation.

Features:

Very simple operation
Simply manually adjustable skew angle
Sturdy and anti-corrosive external unit
Overload protection
10 m coax cable and 5 m control cable preassembled
Future-proof design with USB updates for prospective satellites
3-year warranty
Manufactured in Europe

Scope of Delivery:

Motor-operated external unit with dish, low-noise LNB, control box, mounting materials.

Technical Data:

Power supply 10 – 15 V
Automatical retraction of the antenna when the vehicle is started
Average searching time 30 – 90 seconds (approx.)
Power consumption while searching max. 2 Amperes • Universal LNB with 0.1 – 0.2 dB noise factor
Can store up to 10 satellites
Preprogrammed to 5 satellites: Astra 1 (19.2°), Astra 2 (28.2°), Astra 3 (23.5°), Hotbird (13°) und Thor (0.8° W) – other dish configurations on request
Dish size 65 / 85 cm
Weight antenna unit 10 kg (65 cm) respectively 11 kg (85 cm)

Control Unit

Choose the desired satellite by green LEDs with positions 1 – 5 (1=Astra 1, 2=Astra 2, 3=Astra 3, 4=Hotbird, 5=Thor) and start searching. The control unit always retains the satellite last chosen. Other satellite configurations on request. Software updates are implemented over the front USB port. Delivery includes universal brackets for vertical or hanging installation. Dimensions W 20 x H 4 x D 13 cm.
